Product Model：WR-30PCD/NP

Supply Voltage：DC9V~30V

Power Consumption：< 3W

Horizontal FoV：270°

Horizontal Resolution：0.25°

Range Accuracy：±2cm

Range:20m@ 70% remission(white objects)

     8m  @ 10% remission(black objects)

Response Time：42ms

Ingress Protection：IP65

Operating Temperature：-30°C~50°C

Operating Moisture：35%RH~85%RH

Distance Parameters：30M 40M

Scanning Frequency：21Hz

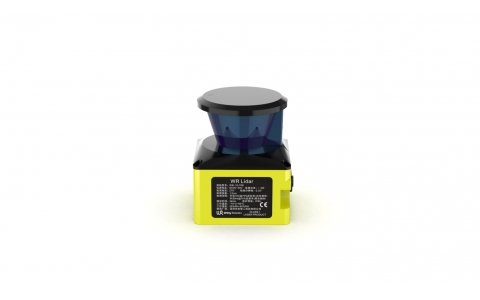

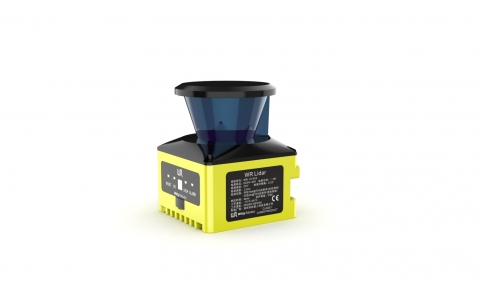

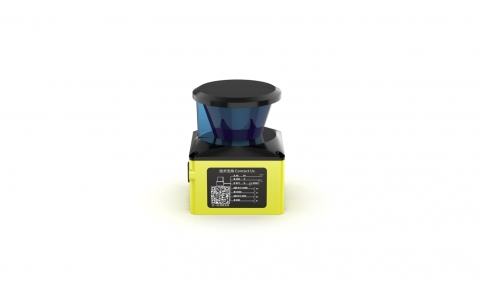

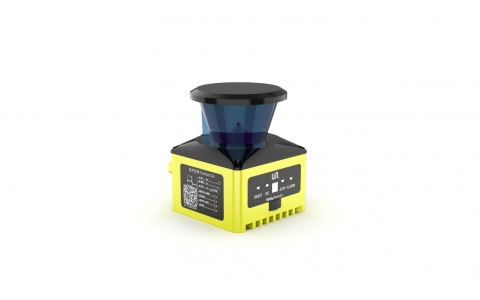

CLASS 1  Witty Robotics  LIDAR PRODUCT

Witty Sensor Dual Output Safety LIDAR: this WR is based on the principle of pulsed laser and is designed to detect a two-dimensional area with an angle of 270° and a radius of 30-40 m by rotational scanning. The dual output interface complies with IEC 61496 and ISO 13849 electrical safety standards. User-configurable protective field patterm and shape via configuration software. Provides real-time PNP zone status alongside point cloud data, single radar accomplishes both data-based and safety-based tasks providing reliable real-time map data for unmanned forklifts and heavy-duty AGVs and independently provides real-time safety zone status. It can be adapted to mainstream navigation controller products in china.
